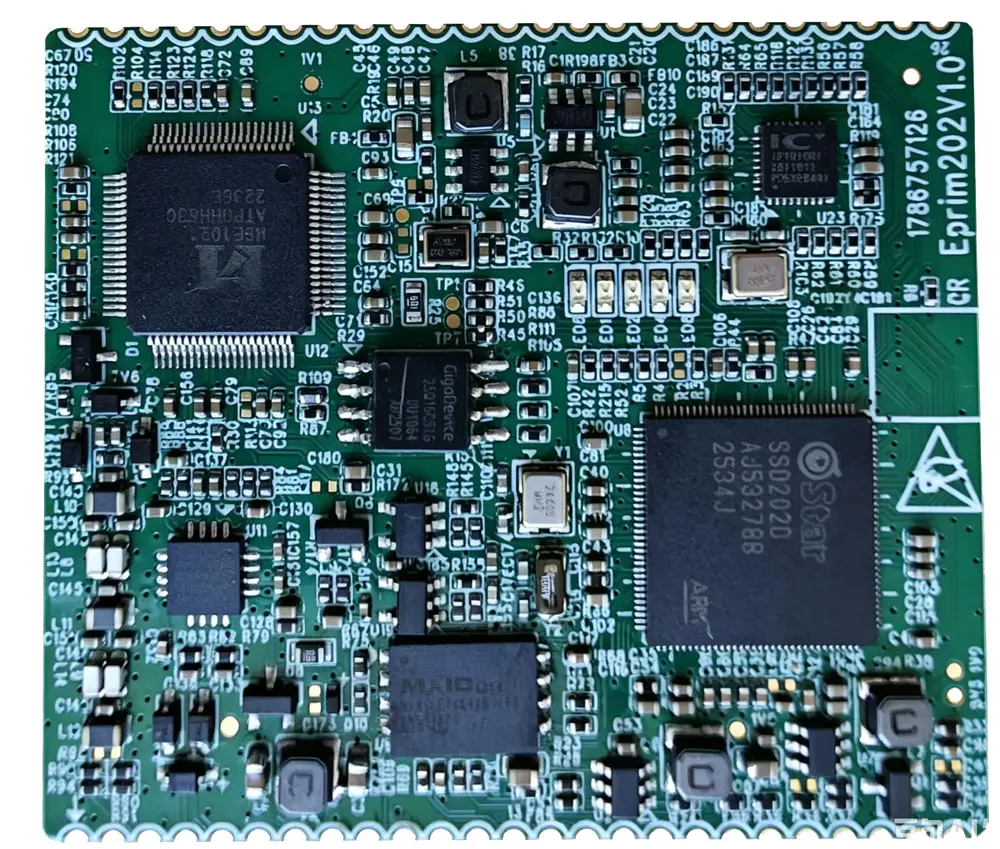

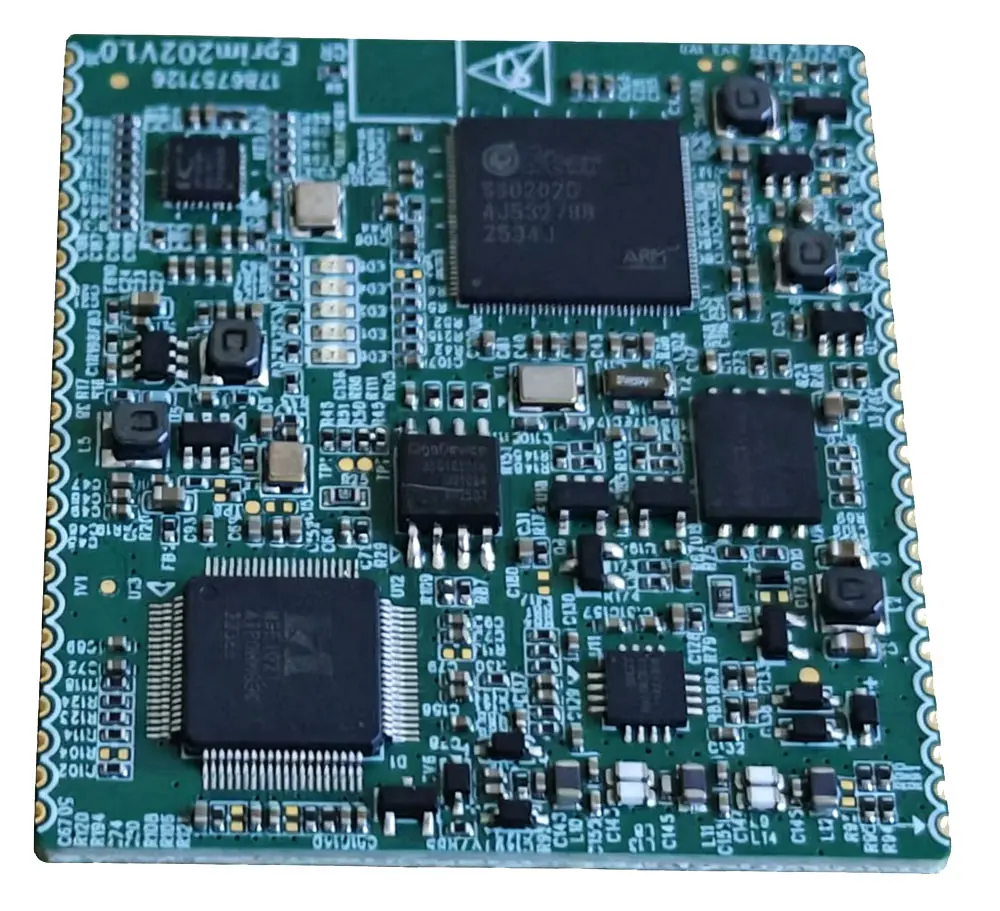

EPLC1‑B is a board‑mounted AC SECC (Supply Equipment Communication Controller) module for ISO 15118‑2/‑20 compliant AC EV charging stations. It adopts castellation (stamp‑hole) pad layout for direct reflow soldering onto host mainboard. This compact SMD module enables AC chargers to implement High‑Level Communication (HLC), supporting Plug & Charge (PnC), V2G/V2H/V2L and auto‑charge functions. Fully compliant with EU AFIR 2025/656 regulation.
Sample Request
EPLC1‑B is a board‑mounted AC SECC (Supply Equipment Communication Controller) module for ISO 15118‑2/‑20 compliant AC EV charging stations. It adopts castellation (stamp‑hole) pad layout for direct reflow soldering onto host mainboard.
This compact SMD module enables AC chargers to implement High‑Level Communication (HLC), supporting Plug & Charge (PnC), V2G/V2H/V2L and auto‑charge functions. Fully compliant with EU AFIR 2025/656 regulation.
Different from DIN‑rail mounted EPLC1, EPLC1‑B is designed for SMD assembly on customer’s main control PCB. It integrates MSE1021 HomePlug Green PHY PLC transceiver, MSEX24‑i analog line driver, dual‑core ARM Cortex‑A7 application processor, Ethernet PHY and CP/PP analog front‑end. The PLC coupling transformer shall be placed externally on host board.
It handles CP PWM generation, CP voltage detection and PP resistance measurement. Emergency‑stop signal output is available for breaker control, triggered by OCPP backend or EVCC requests. Host communication can be done via Ethernet or UART (RS232). External Ethernet pin header is required for local / remote firmware configuration and upgrade.
| Item | Parameter |
|---|---|
| Processor | ARM Cortex‑A7 Dual‑Core @1.2 GHz |
| PLC Chipset | MSE1021 (HomePlug Green PHY) + MSEX24‑i analog driver |
| Memory | 128 MB DDR3 RAM / 128 MB eMMC Flash |
| PLC Frequency Band | 2 MHz ~ 30 MHz |
| PLC Max Reach | 300 m (CP‑PE loop) |
| Recommended Coupling Transformer Ratio | 1:1:1 (external on host PCB) |
| Power Supply | VDD_PL 5 V (4.5‑5.5 V); IO 3.3 V |
| Typical Power Consumption | 0.8 W (max 1.5 W @25 °C) |
| Main Interfaces | Ethernet MII, UART(RS232), PM‑UART debug, CP_IN, PP_CC, CP_PWM_OUT, EMERG_OUT, GPIO, SD card, RESET |
| Operating Board Temp | ‑40 °C ~ +85 °C |
| Storage Temperature | ‑40 °C ~ +125 °C |
| Humidity | 10‑90 % non‑condensing |
| Mechanical Dimension | 52 mm × 45 mm, 50‑pad castellation SMD |
| OS | Linux Kernel 4.4 |
The Eprim EPLC1 is a SECC controller which enables a seamless upgrade AC EV chargers adding advanced functionalities such as Plug & Charge (PnC), auto-charge, and V2G through high-level communication, supporting ISO 15118-1/-3/-20, and fully EU-2025/656 compliant.
The Eprim EPLC1 Plus is a SECC controller which enables a seamless upgrade AC EV chargers adding advanced functionalities such as Plug & Charge (PnC), auto-charge, and V2G through high-level communication, supporting ISO 15118-1/-3/-20, and fully EU-2025/656 compliant. The plus model has 16-pin socket , and DHCP server mode functionality for the Ethernet port .
Eprim SECC DC1 is a product to easily upgrade your DC fast EV charger station to have future functions like PnC Auto Charging and V2G functions with high-level communication. Which provides all core functionalities defined in ISO 15118-1/3/20 standard and DIN 70121. It is your ideal choice for next-generation DC charging infrastructure.
Eprim AC EV charger controller is a highly adaptable IEC 61851 and ISO 15118 compliant charging controller. It includes the S/W stacks like OCPP 2.0.1, ISO 15118-20, IEC 61851. It implements the functionalities communicate with OCPP head-end and EVCC, charger controlling, HMI etc. It integrates PWM generator to be compatible with PWM and HLC communication. It is a complete design solution for an AC EV charger.
