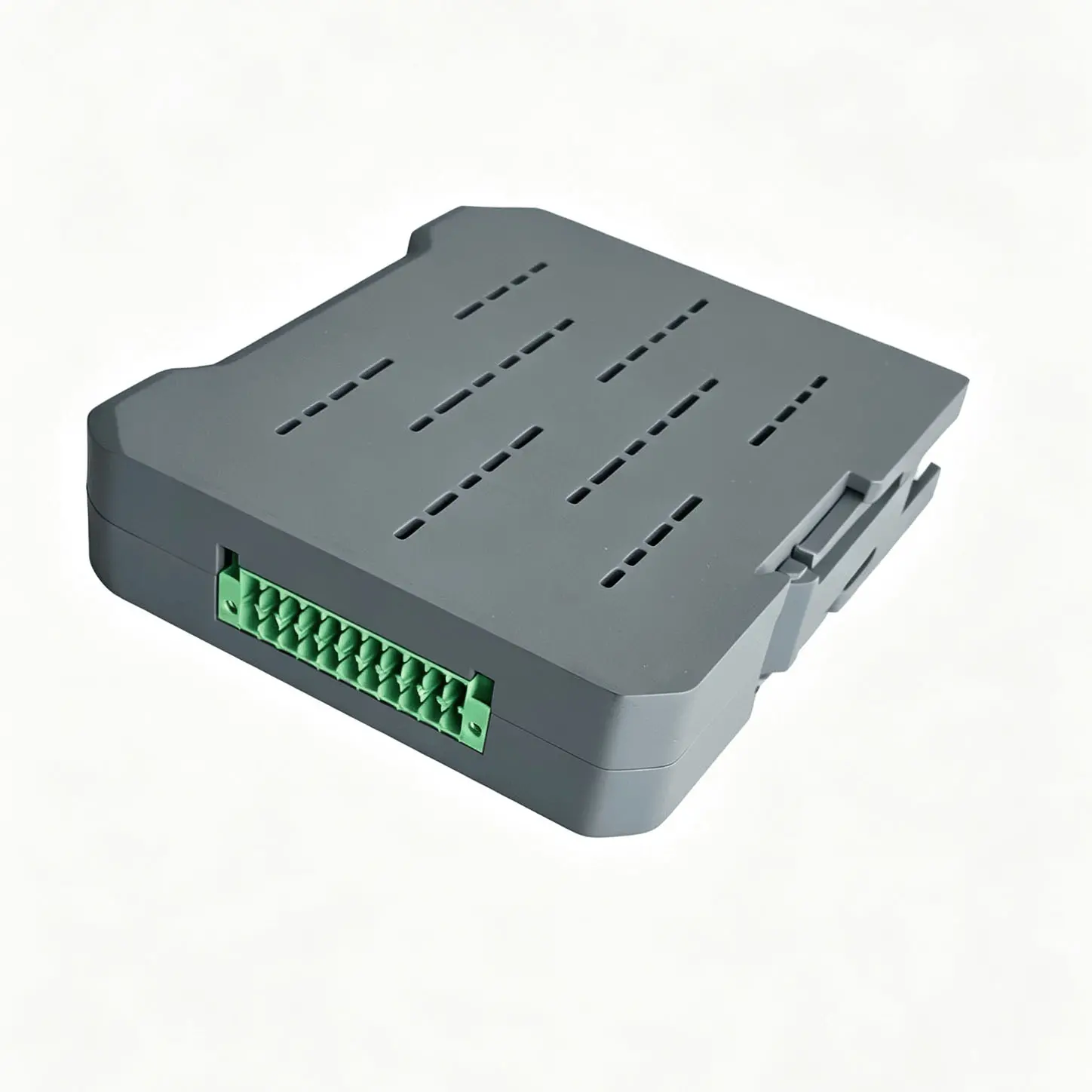

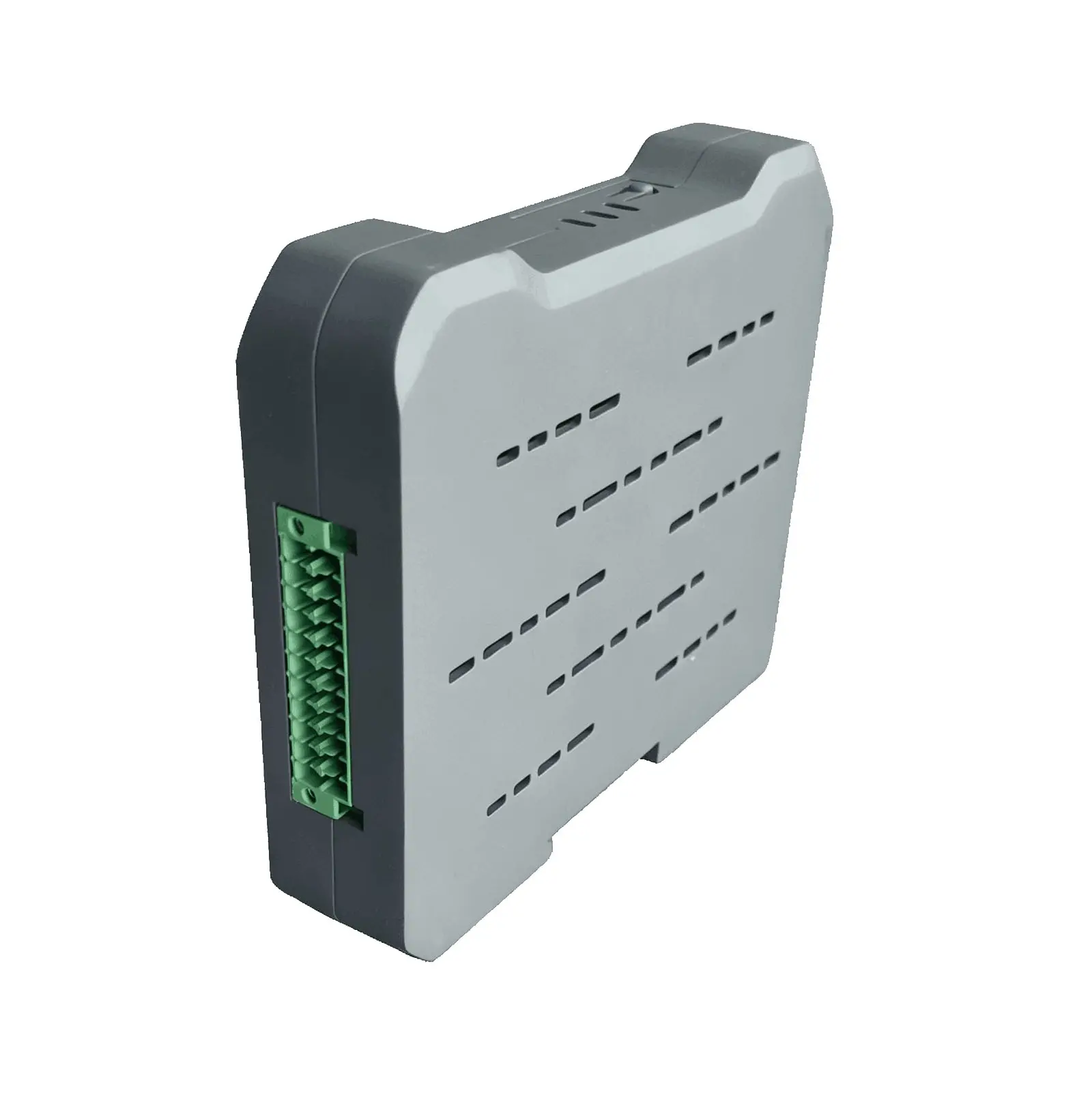

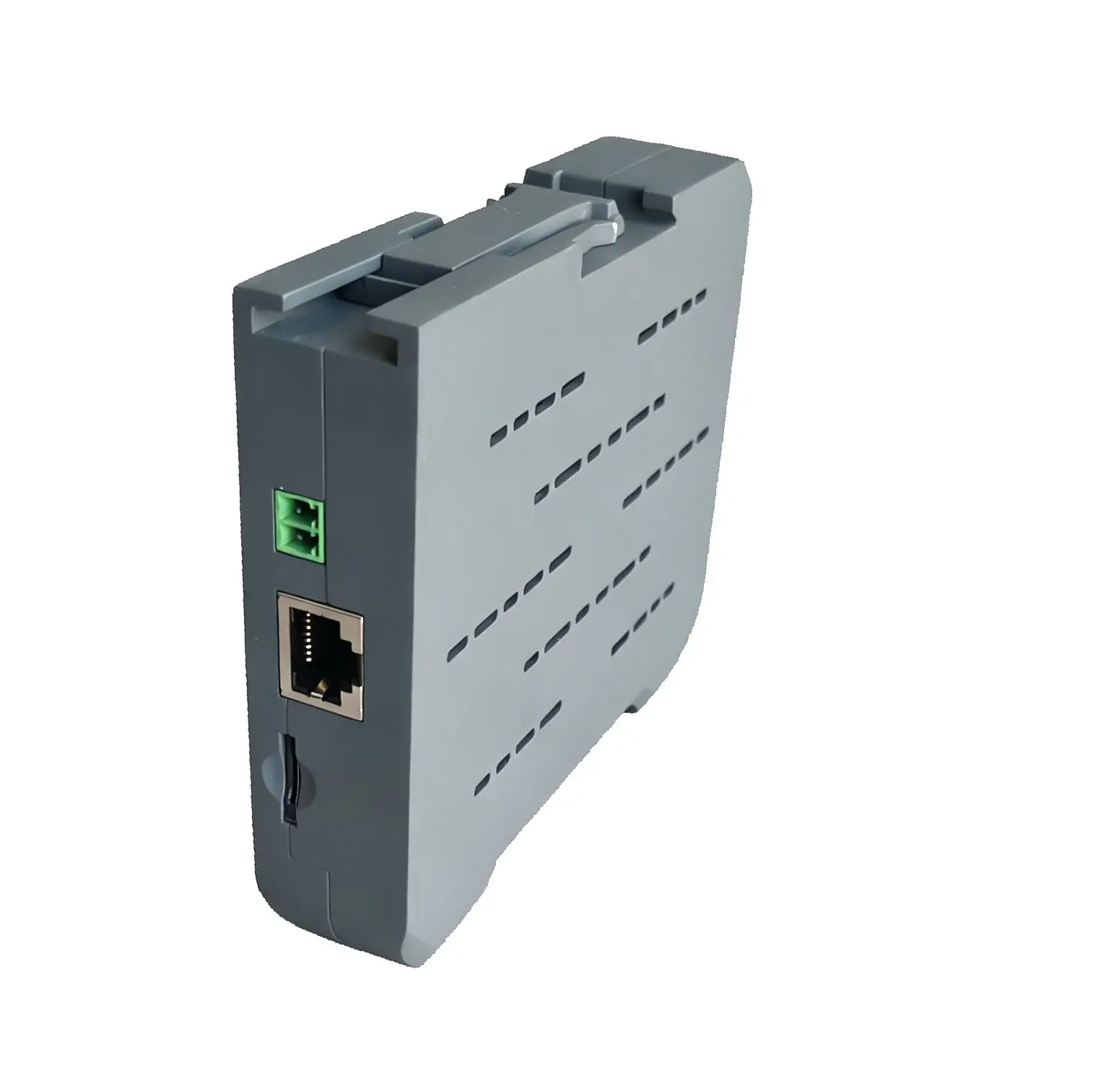

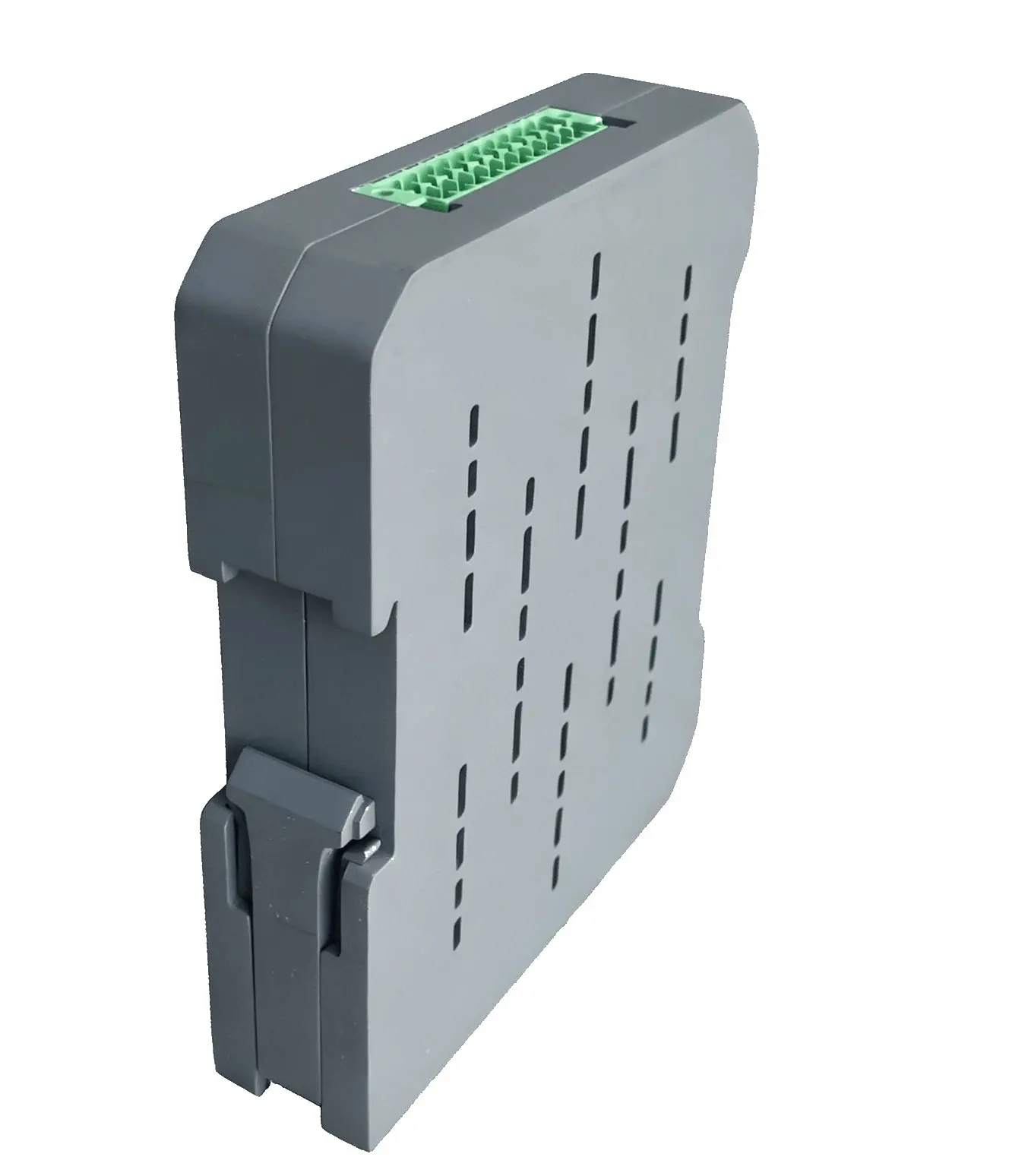

The Eprim EPLC1 is a SECC controller which enables a seamless upgrade AC EV chargers adding advanced functionalities such as Plug & Charge (PnC), auto-charge, and V2G through high-level communication, supporting ISO 15118-1/-3/-20, and fully EU-2025/656 compliant.
Sample Request
The Eprim EPLC1 is a SECC controller which enables a seamless upgrade AC EV chargers adding advanced functionalities such as Plug & Charge (PnC), auto-charge, and V2G through high-level communication, supporting ISO 15118-1/-3/-20, and fully EU-2025/656 compliant.
Eprim EPLC1 is equipped with MSE1021 compliant HomePlug AV/Green PHY standard. Powered by low power high performance MCU ARM cortex-A7 dual core up to 1.2GHz.
| Processor / Microcontroller | SSD202D/ ARM cortex-A7 Dual Core |
|---|---|
| Powerline Chips | MSE1021 |
| Power Supply: | 12/24V nominal (7 - 27 V) DC |
| Storage Flash: | 128 MByte internal eMMC |
| Storage RAM: | 128 MByte DDR3 |
| Interfaces: | Ethernet, CAN/RS232 |
| Operating System: | Linux Kernel 4.4 |
| Temperature Range : | -40 ℃ - 85 ℃ |
Built-in HSM support TLS 1.3
AEC-Q100 grade 2 certification and ASPICE level 1
128-bit AES link encryption with easy plug-and-play key management
The Eprim EPLC1 Plus is a SECC controller which enables a seamless upgrade AC EV chargers adding advanced functionalities such as Plug & Charge (PnC), auto-charge, and V2G through high-level communication, supporting ISO 15118-1/-3/-20, and fully EU-2025/656 compliant. The plus model has 16-pin socket , and DHCP server mode functionality for the Ethernet port .
Eprim SECC DC1 is a product to easily upgrade your DC fast EV charger station to have future functions like PnC Auto Charging and V2G functions with high-level communication. Which provides all core functionalities defined in ISO 15118-1/3/20 standard and DIN 70121. It is your ideal choice for next-generation DC charging infrastructure.
Eprim AC EV charger controller is a highly adaptable IEC 61851 and ISO 15118 compliant charging controller. It includes the S/W stacks like OCPP 2.0.1, ISO 15118-20, IEC 61851. It implements the functionalities communicate with OCPP head-end and EVCC, charger controlling, HMI etc. It integrates PWM generator to be compatible with PWM and HLC communication. It is a complete design solution for an AC EV charger.
