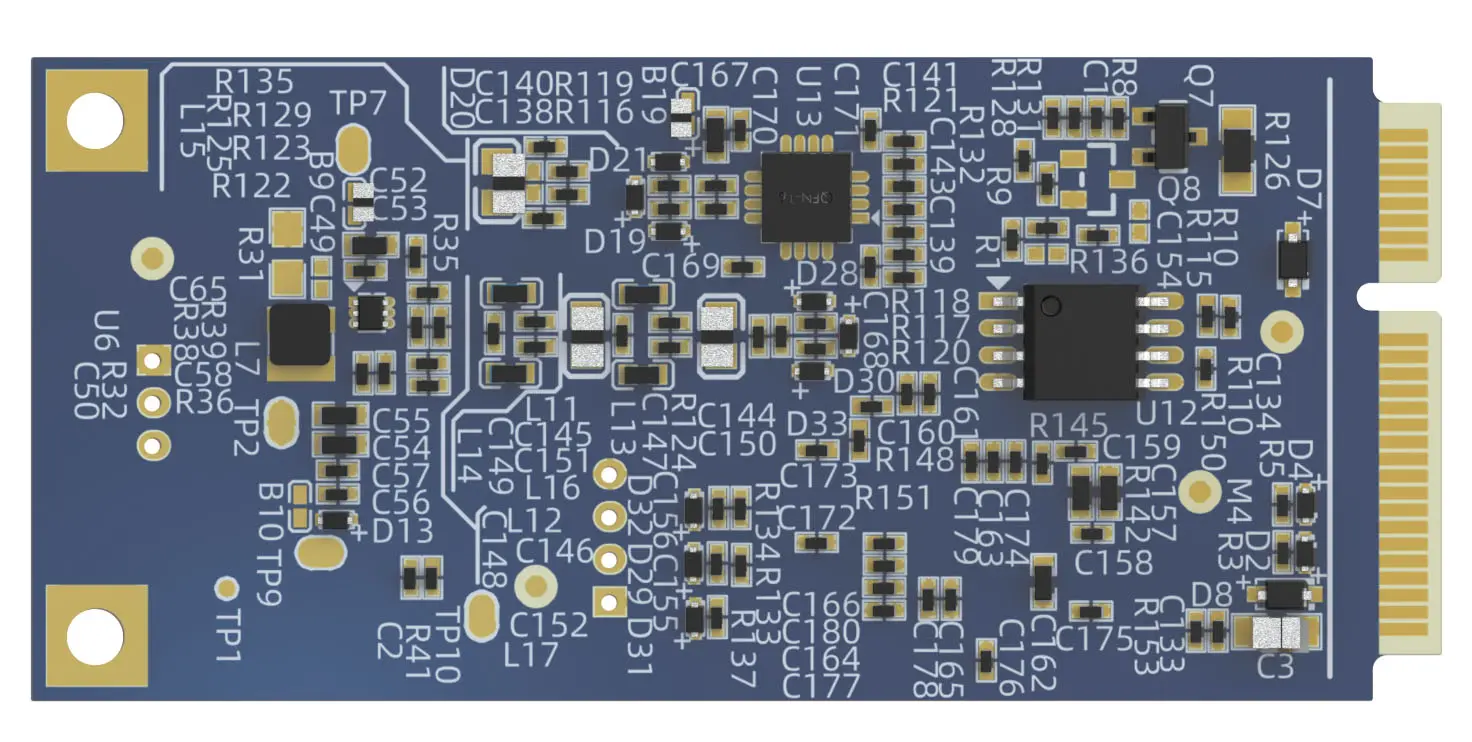

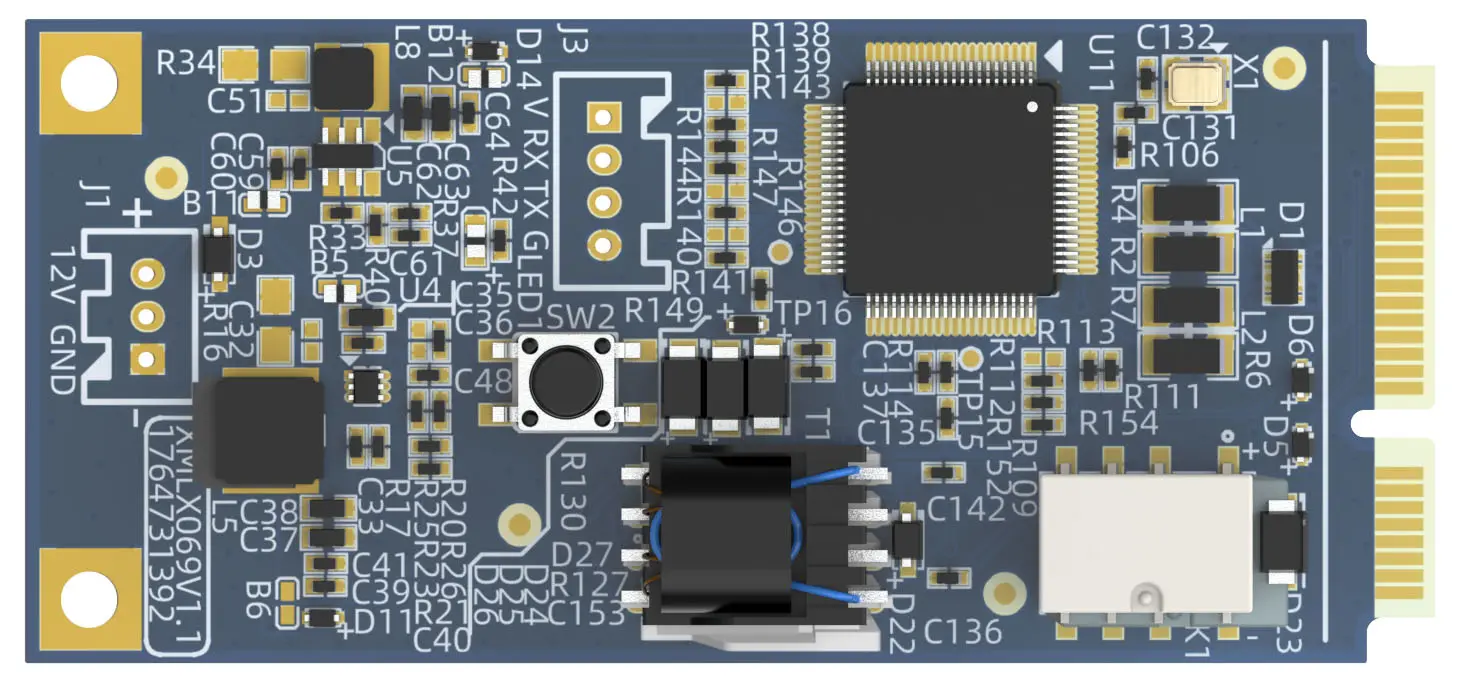

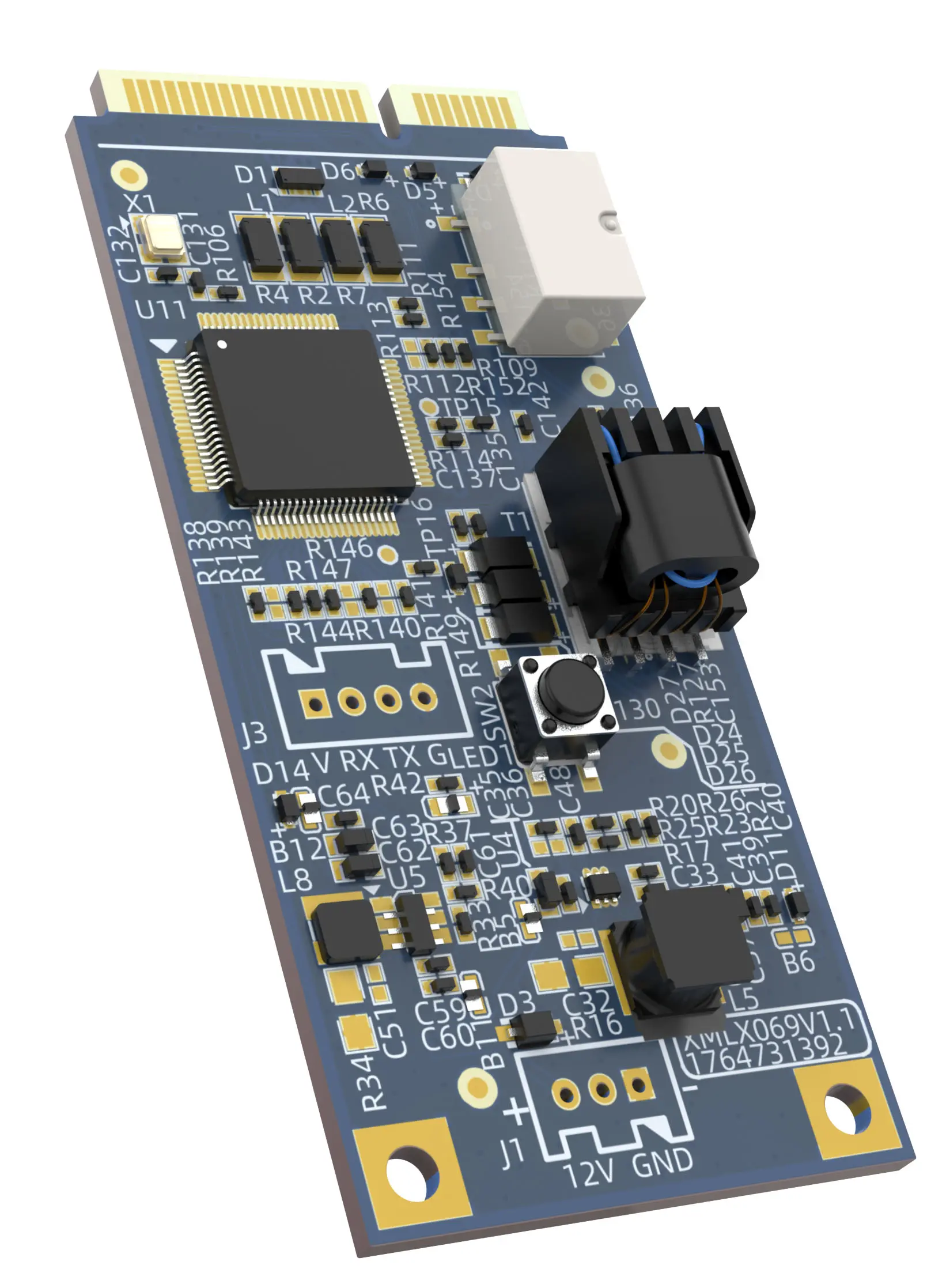

EPRIM pure PLC module adopts MSE1021 (Vertexcom) powerline communication chip, fully compliant with HomePlug GreenPHY and ISO 15118-3 standard. It realizes stable broadband powerline communication between EV and EVSE, perfectly matching CCS charging system.
Sample Request
The Eprim Pure hardware PLC is a versatile PowerLine Communication module that can be interfaced with the host through either a traditional SPI interface or a 100BaseT Ethernet port. Its key strength is the versatility of supporting different PLC chipsets from different manufacturers in one uniform package, providing ease in switching or replacing parts during supply chain disruptions. A variant using Vertexcom’s MSE1021 chipset is already available. Specifically designed for electric vehicle charging systems, it complies with the ISO 15118-3 standard, suitable for CCS.
✅ Fully compliant with ISO 15118-3 & HomePlug GreenPHY
support CCS mainstream charging system
✅ Excellent EMC anti-interference performance
stable operation for outdoor public charging stations
✅ Multiple interface options (SPI / UART / Ethernet)
easy docking with external main MCU
✅ RoHS & REACH compliant
meet EU market access requirements
✅ High communication rate up to 10 Mbit/s
max transmission distance 300m
✅ Ultra-compact PCB design
flexible layout for limited space products
Item | Specification |
PLC Chip | MSE1021 (Vertexcom) |
Communication Standard | ISO 15118-3, HomePlug GreenPHY |
Max Data Rate | 10 Mbit/s |
Max Communication Distance | 300 m |
Operating Temperature | -40°C ~ +85°C |
Supply Voltage | 3.3V / 5V |
External Interface | SPI / UART / 100M Ethernet |
Application | AC EV Charger, DC EV Charger, On-board EVCC |
Certification | RoHS, REACH |
