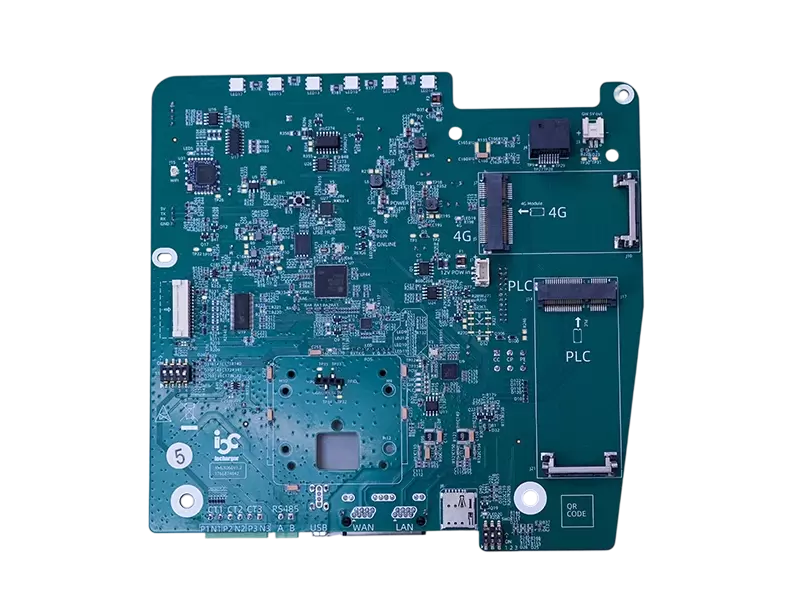

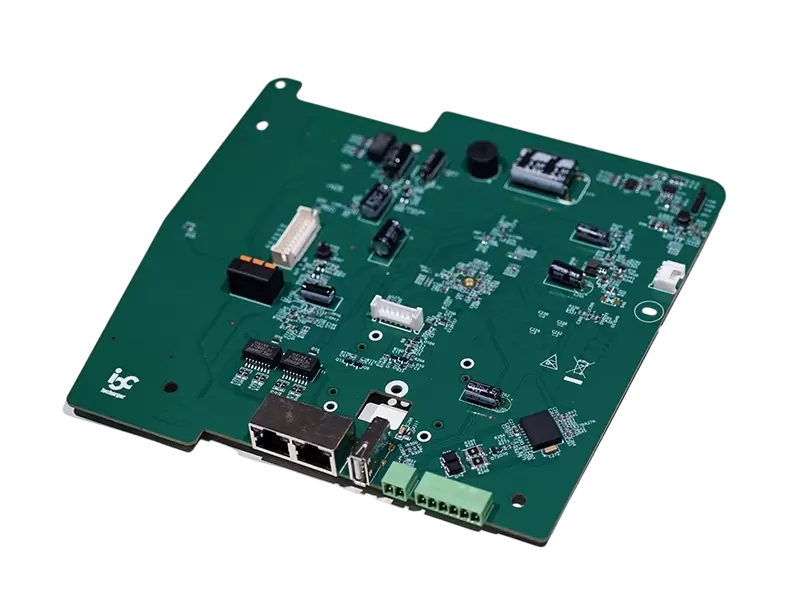

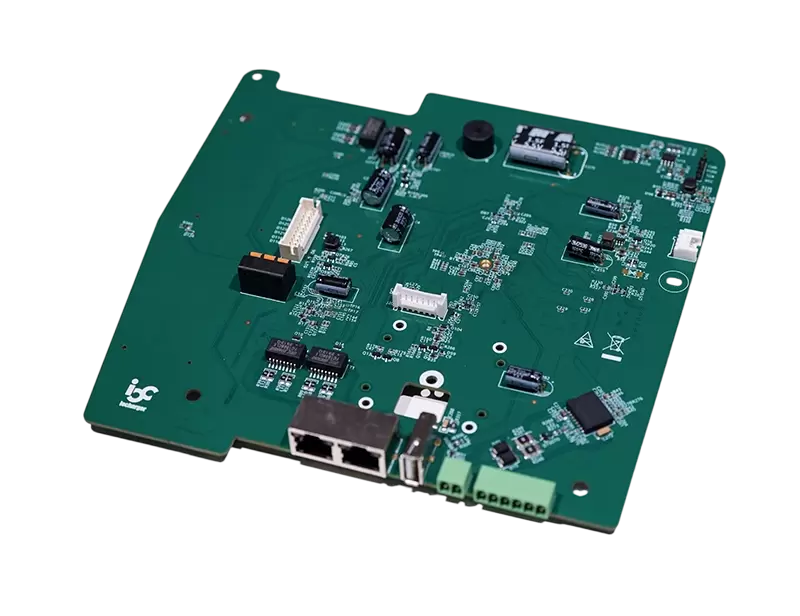

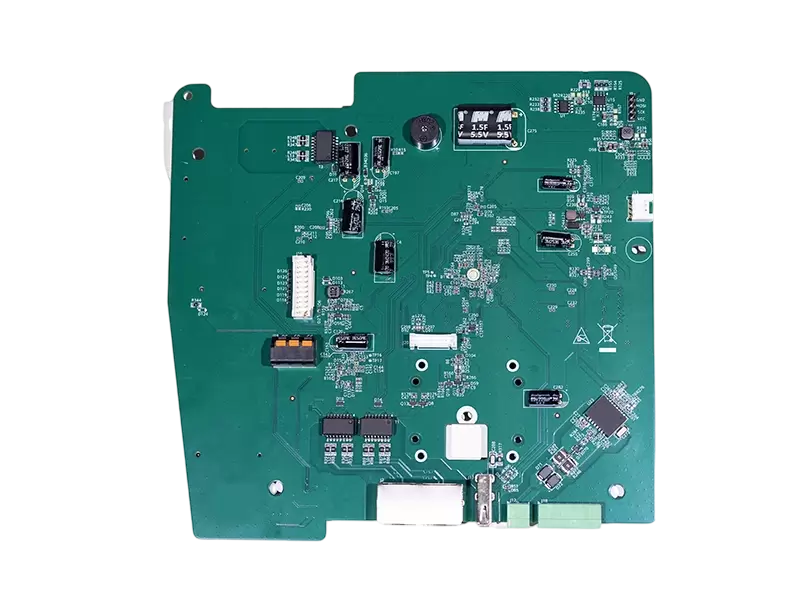

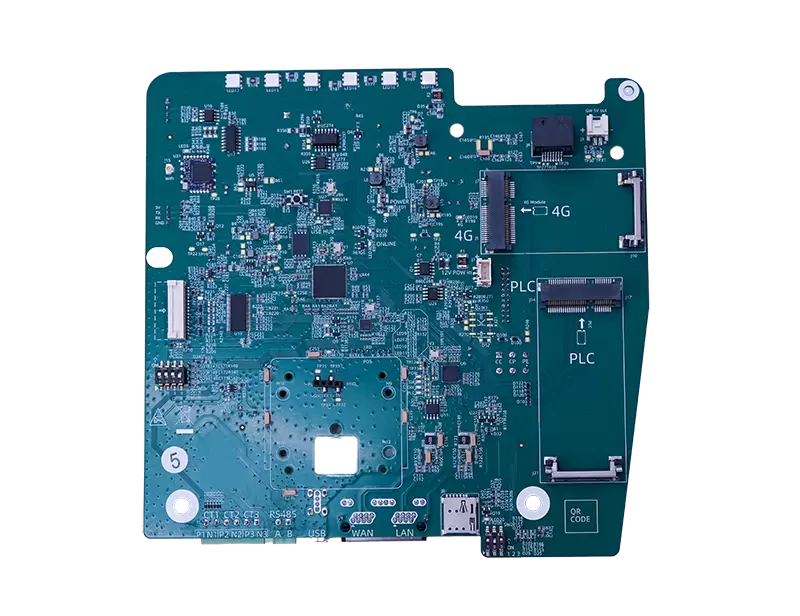

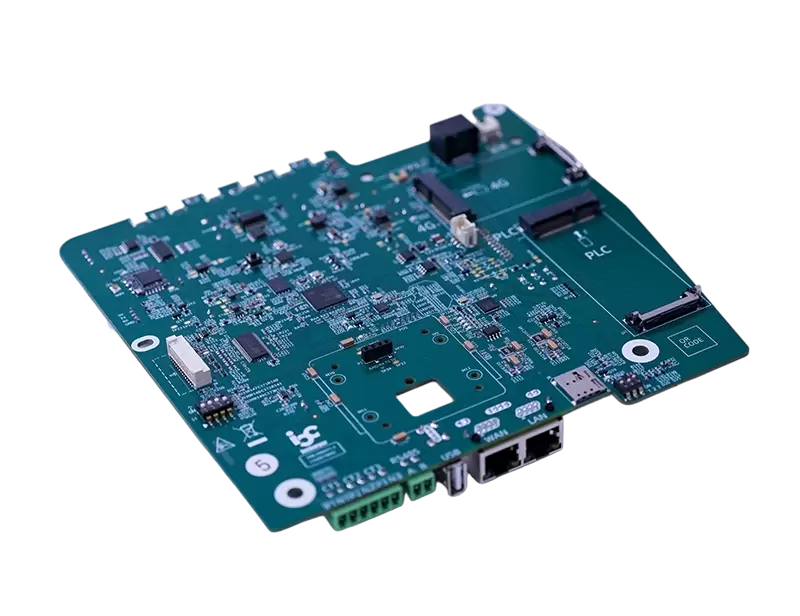

Eprim AC EV charger controller is a highly adaptable IEC 61851 and ISO 15118 compliant charging controller. It includes the S/W stacks like OCPP 2.0.1, ISO 15118-20, IEC 61851. It implements the functionalities communicate with OCPP head-end and EVCC, charger controlling, HMI etc. It integrates PWM generator to be compatible with PWM and HLC communication. It is a complete design solution for an AC EV charger.
Sample Request
Eprim AC EV charger controller is a highly adaptable IEC 61851 and ISO 15118 compliant charging controller. It includes the S/W stacks like OCPP 2.0.1, ISO 15118-20, IEC 61851. It implements the functionalities communicate with OCPP head-end and EVCC, charger controlling, HMI etc. It integrates PWM generator to be compatible with PWM and HLC communication. It is a complete design solution for an AC EV charger.
| Processor / Microcontroller | SSD202D/ ARM cortex-A7 Dual Core |
|---|---|
| Powerline Chips | MSE1021 |
| Power Supply: | 12/24V nominal ( 7 – 27 V) DC |
| Storage Flash: | 128 MByte internal eMMC |
| Storage RAM: | 128 MByte DDR2 |
| Interfaces: | Ethernet, CAN/RS232 |
| Operating System: | Linux Kernel 4.4 |
| Temperature Range : | -40 ℃ - 85 ℃ |
Built-in HSM support TLS 1.3
AEC-Q100 grade 2 certification and ASPICE level 1
128-bit AES link encryption with easy plug-and-play key management
The Eprim EPLC1 is a SECC controller which enables a seamless upgrade AC EV chargers adding advanced functionalities such as Plug & Charge (PnC), auto-charge, and V2G through high-level communication, supporting ISO 15118-1/-3/-20, and fully EU-2025/656 compliant.
Eprim SECC DC1 is a product to easily upgrade your DC fast EV charger station to have future functions like PnC Auto Charging and V2G functions with high-level communication. Which provides all core functionalities defined in ISO 15118-1/3/20 standard and DIN 70121. It is your ideal choice for next-generation DC charging infrastructure.
Micro Grid Management system is a platform to manage and optimize using and cost of single or portfolio of energy source which can be combined with PV, Wind, Grid, BESS, Gensets. To ensure the seamless running with various energy devices on your load site such as EV charging stations or others. It makes the different energy sources work together as a mini-independent grid and implement intelligent energy distribution which procures load consumption at lowest cost energy, maximizing the operation
